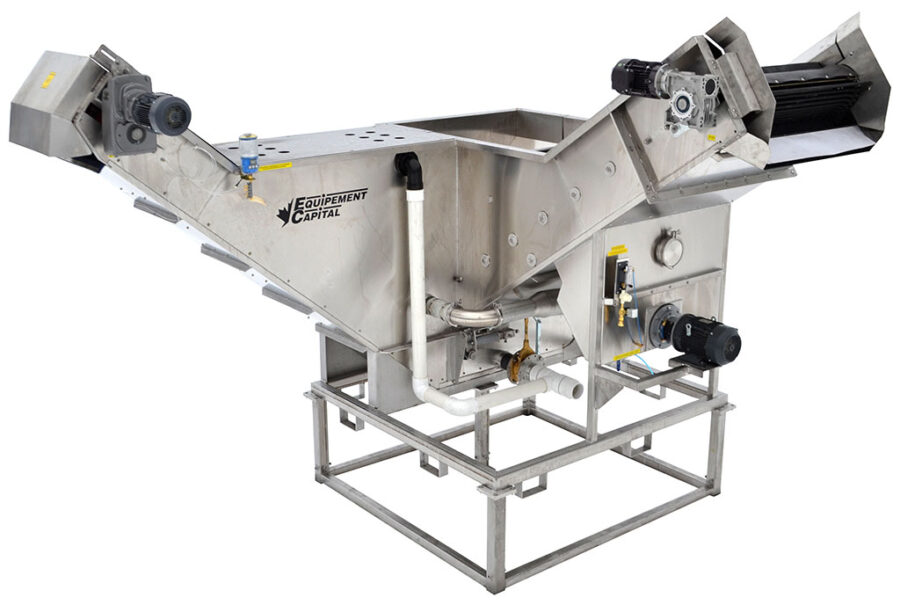

Compact rock separator

Our compact rock separator removes rocks and clods of your vegetables to avoid damages of your produces and your equipment further in your washing/packing line.

Specifications:

– Capacity up to lb/h for 2460 model & up to 90 000 lb./h for 3790 model.

– Bruise free

– Painted mild steel or stainless steel construction.

– Unloading at left or right.

– Propeller pump with 5 hp washdown motor .

– NTN triple seal steel bearing (out of water).

– NTN, RHP or AMI stainless steel bearings (in water).

– 2 doors for an easy access to mechanics.

– Quick access door to the propeller.

– Web rock elevator to exit the rocks.

Produces elevator:

– 2 hp motor with gearbox (food grade oil)

– Web supported by slides and sealed casters.

– Hydro belt, waterproof (28 mm pitch).

– Net width inside stainless steel side plates: 24″ for 2460 model and 37’’ for 3790 model.

– Rock trap included with web.

Control panel:

– Power: 230v 1ph, 230v 3ph, 460v 3ph or 575v 3ph.

– Tactile screen.

– Automatic operating mode.

Options:

– Web pitch: 32 mm or 36 mm.

– Floor frame with 5 adjustable legs.

– Longer produces elevator.

– Splash-proof entrance slab.

– Pneumatic drain valve.

– Clean water supply electric valve.

– Water level sensor.

– Industrial pump Gorman-Rupp.
